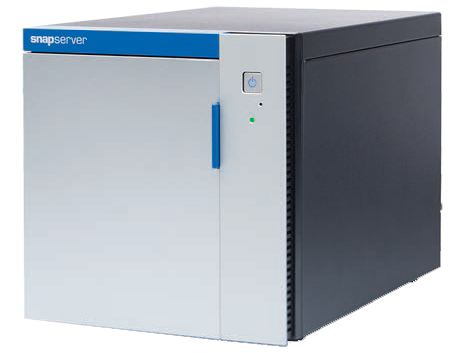

SnapServer XSD 40
eXpand and Sync on your Desktop

SnapServer XSD 40

SnapServer XSD Series
SnapServer XSD System Bundles
ACC – Memory Module, XSR40/XSD40/DX1, 2GB DIMM
#OT-ACC902022
Our Price: $121.00
ACC - SnapServer XSD 40 2TB SATA w/Carrier
#OT-ACC902023
Our Price: $171.00
ACC - SnapServer XSD 40 3TB SATA w/Carrier
#OT-ACC902024
Our Price: $216.00
ACC - SnapServer XSD 40 4TB SATA w/Carrier
#OT-ACC902025
Our Price: $315.00

More pricing below, click here!

Overview:

Built upon the award winning GuardianOS, the SnapServer XSD 40 offers enterprise class management and data protection features, all in a desktop form factor. Ideal for file sharing and remote access the SnapServer XSD 40 supports SATA-II hard drives and is scalable up to 16TB. The SnapServer GuardianOS includes DynamicRAID for seamless storage expansion by adding or replacing hard drives as capacity requirements change. In addition, all SnapServer storage volumes can grow or shrink dynamically within the storage pool without IT intervention, preventing costly provisioning errors and unnecessary upgrades.

With both block and file level access, the XSD 40 has cross-platform compatibility with Windows, Linux, UNIX and Macintosh systems. GuardianOS includes additional data protection features such as high performance snapshots, direct backup to RDX, BitTorrent Sync™ and optional data replication.

Protect your data and let your storage grow seamlessly as capacity needs change with the SnapServer XSD 40 and DynamicRAID.

With This Product You Can...

  • Protect and store data with DynamicRAID, offering simple expansion and volume management
  • Share and access data anywhere across Windows, UNIX/Linux, Macintosh, iOS and Android Platforms
  • Protect and recover your data with snapshots and replication
  • Replicate or Sync data between a central location and one or more remote locations
  • Backup to RDX media, disk, or LTO tape

About the SnapServer XSD Series

Expand and Sync on your desktop with the SnapServer XSD 40. As a powerful local storage server, or node in a distributed enterprise deployment, the SnapServer XSD 40 can be configured in less than 30 minutes. With both block and file level access, the SnapServer XSD 40 has cross-platform compatibility with Windows, Linux, UNIX and Macintosh systems and is ideal for file sharing and storage consolidation. The SnapServer XSD 40 includes data protection features such as, DynamicRAID, high performance snapshots, and optional data replication. With support for SATA-II hard drives the SnapServer XSD 40 is scalable up to 16TB for seamless growth. All SnapServer storage volumes are thinly provisioned and can be grown without limits or manual administrative provisioning.

With the addition of BitTorrent Sync™ administrators can sync and replicate to other SnapServers for quick disaster recovery and also enable anywhere file access with any mobile device. Included are multiple back up features incorporating LTO tape, disk-to-disk backup, and RDX media, so you can ensure your data is available when you need it most.

  • DynamicRAID
  • BitTorrent Sync Remote Syncing and mobile access
  • Thin Provisioning
  • RDX Backup
  • High Performance Snapshots
  • Multiple backup options
  • Replication with Snap EDR

Features:

DynamicRAID

DynamicRAID – Automatic Capacity Growth with Thin Provisioning

Don’t limit yourself to the features of traditional RAID. With the combination of DynamicRAID and SnapServer your protection is automatically optimized for redundancy and capacity without manual intervention. Add or replace SnapServer hard drives at any time to expand existing storage pools and take advantage of drive size mismatches without wasting space.

Highlights
  • Mix and match drives of different sizes to dynamically grow storage pools
  • Choose from single or dual parity protection with the click of your mouse
  • Automatically optimizes RAID levels as drives are added to the storage pool
Why You Need It...
  • DynamicRAID allows you to add storage your SnapServer DX by adding or replacing hard drives without downtime
BitTorrent Sync

BitTorrent Sync™ – Secure, Unlimited File-Syncing. No 3rd Party Cloud Required

It’s time to get rid of your expensive cloud storage provider. BitTorrent Sync™ is preinstalled on the SnapServer XSD 40 series NAS. Automatically sync files between directories on geographically distributed SnapServer systems. Access those files with any BitTorrent Sync™ client, server or mobile application. There are no limits on file sizes or file transfers so you can build your own high performance private cloud that is accessible from anywhere.

Highlights
  • Full encryption with secret keys
  • Incremental peer-to-peer file transfers
  • Syncing performance increases as more devices are added
  • iOS, Windows Phone, Kindle, and Android Device Support
Why You Need It...
  • Synchronize and access your files from anywhere, from any device by simply exchanging secret keys or scanning QR codes.
RDX Integration

RDX Integration – Rugged, reliable disk-to-disk backup

SnapServer administrators can take advantage of Overland Storage RDX direct to disc backup. Plug an RDX QuikStor device into the SnapServer USB ports and selectively copy data from disk-to-RDX. Utilize RDX media as a form of backup and offsite disaster recovery. Copy data and remove for remote archiving, or as an easy way to move data between devices.

Highlights
  • Format RDX media directly with XFS or NTFS
  • Fast reads and writes over USB3
  • Up to 2TB per RDX cartridge
Why You Need It...
  • Quickly backup individual files and directories to removable RDX media for archiving, backup and disaster recovery
Revolutionary Volume Management

Dynamic Volume Management – Let GuardianOS Do the Heavy Lifting

Forget about provisioning. Create limitless volumes on your SnapServer and they will automatically share the available space in the disk storage pool; this means that volumes will only occupy as much space as their data requires, leaving space available to other volumes on demand. Storage volumes can also automatically grow and shrink as needed, and administrators can assign optional quotes to control volume sizes across the storage pool.

Highlights
  • Create volumes without size limits
  • Dynamically grow and shrink volumes independently and on demand with no downtime
  • Grow volumes automatically by adding or replacing hard drives to increase the storage pool capacity
Why You Need It...
  • The SnapServer NAS volumes share a common storage pool and can grow or shrink on demand with no IT intervention
Unified Storage

Unified Storage – Freedom of Choice

Consolidate your storage by hosting both block and file level data on your SnapServer NAS system. Utilize common networking protocols for file sharing, collaboration and backup, or host database storage and virtualized servers on SnapServer iSCSI LUNs simultaneously.

Highlights
  • File level access with SMB, NFS, AFP, HTTP, FTP protocols or block level access with iSCSI
  • Store your block and file-based data on a single SnapServer
  • Support your server consolidation and virtualization initiatives
Why You Need It...
  • Unified Storage allows you to store block and file-based data on a single SnapServer
Advanced Security

Advanced Security – Intelligence Matters

The SnapServer can provide local security for small infrastructures or join larger networks that include complex security policies. With full integration into Windows Active Directory domains, UNIX domains, and cross-compatibility for mixed security environments, the SnapServer allows you to maintain consistent permissions for users with multiple system types, with minimal intervention, across your business infrastructure.

Highlights
  • Fully integrates with your existing Windows Active Directory Domain or UNIX NIS user and group database
  • Automatically stays synchronized with the full set of 30 distinct AD permission attributes
  • Windows-to-UNIX ID mapping and local permission management
Why You Need It...
  • Advanced security allows your SnapServer to fully integrate within any corporate security infrastructure
High Performance Snapshots

High Performance Snapshots – Fast File Recovery

Protect SnapServer data by taking point-in-time virtual copies of the filesystem. Snapshots in GuardianOS are filesystem aware and are optimized to minimize write performance penalties. Recover files as needed by browsing mountable snapshot volumes. When properly implemented, snapshots enable faster operational recovery with little IT intervention. Snapshots also allow for flexible test environments without putting your critical data at risk and without the need to do a complete volume copy of the data to test applications under development or for piloting purposes.

Highlights
  • Create snapshots volumes to track changes on thinly provisioned SnapServer data volumes
  • Mount snapshot volumes for drag-and-drop recovery of files
  • Unique snapshot implementation decreases write performance penalty
Why You Need It...
  • Protect from accidental file deletion and automatically track previous file states for fast file reversion
Replication with SnapEDR

Replication with SnapEDR – Across the Hall or Across the Globe

Prepare for disaster recovery with Snap Enterprise Data Replicator (Snap EDR). With Snap EDR you can automatically replicate files between SnapServers, Windows, Linux, UNIX and Macintosh servers. Built for globally distributed businesses, Snap EDR will ensure that your files are moved off-site safely and securely.

Highlights
  • Supports byte-level incremental replication, bandwidth throttling, compression and encryption
  • Share data with the distribute feature to remotely send documents
  • Remotely backup servers across the globe from a single management interface
Why You Need It...
  • Securely and efficiently replicate files off-site with Snap Enterprise Data Replicator to protect from disaster

Technical Specifications:


Technical Specifications:
Operating System Guardian OS 7.6
Management Wizard-based Installation, Volume Usage Statistics, Event Log, Email Notification, Administrator Authentication, Remote Management, Multi-Server Monitoring, and Visualization with SnapServer Manager
Network File Protocols SMB, CIFS, NFS, AFP, HTTP, FTP
iSCSI Support Included
Snapshots Included
Replication Snap EDR™
Sync and Mobile Access BitTorrent Sync
Microsoft Active Directory Support Included
VMware Support VMWare Ready
Form Factor Desktop 4-drive
CPU and Memory 1.8GHz processor / 1 X 2GB ECC Memory Module (upgradable to 2 x 2GB)
Drive Configuration Two or Four SATA-II Drives
RAID Levels DynamicRAID Single or Dual Parity / Traditional RAID 0, 1, 5, 6, 10
Drive Types Supported Enterprise SATA: 1TB, 2TB,3TB, 4TB | 7,200 RPM
Network Connectivity 2 x Gigabit Ethernet ports (autosensing 10/100/1000Base-T, dual RJ-45 network connections); Support for stand-alone, failover, and load balancing modes
USB Interface RDX QuikStor, UPS, Tape Devices, Printers
Local Backup Interface USB 2.0, USB 3.0
Physical / Mounting Width: 7.87 in (200 mm)
Height
 8.38 in (213 mm)
Depth
 12.6 in (320 mm)
Weight
: Without Drives: 18 lbs (8.2 kg) With 4 Drives: 24 lbs (10.9 kg)
Agency Approvals cTUVus, CE, VCCI, FCC Class A
Power Power Rating: 200W, 100-240 VAC, 50-60 Hz
Input Current: Max 3.5A (RMS) @ 115Vac, 2A (RMS) @ 230Vac
Power Consumption: 41W (steady state)
Environmental Limits Operating Environment:
Temperature: 32° F to 104° F (0° C to 40° C),
Humidity Range: 20% to 80%,
Vibration: .25G’s at 5-1000-5Hz sinusoidal,
Shock: 3 pulses of 30G’s for up to 30ms,
Altitude: -50 ft. to +10,000 ft (-15.24 m to 3,048 m)

Non-Operating Environment:
Temperature: -40° F to 149° F (-40° C to 65° C),
Humidity Range: 90%, non-condensing
Vibration: 1G at 5-1000-5Hz sinusoidal,
Altitude: -50 ft. to +35,000 ft. (-15.24 m to 10,668 m)
Standard Warranty 3-year Return to Factory parts replacement; 24x7 telephone support *Snap EDR support sold separately
Supported Platforms windows   linux   apple   vmware
Certifications Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 Hyper-V, Windows Server 2012, VMWare
Included Accessories US Power Cord, EMEA Power Cord, UK Power Cord, Serial DB9 to RJ-11 Adapter, Two 7 ft. Cat-5 Ethernet Cables, Quick Start Guide

Product Views:

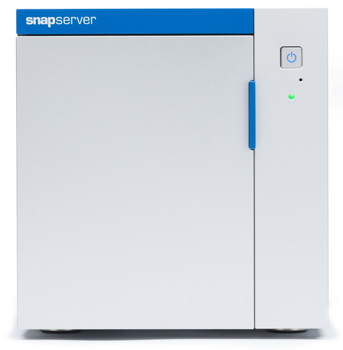

Front View
Front View

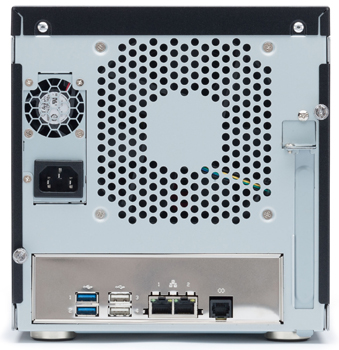

Rear View
Rear View



xsd 40 front view

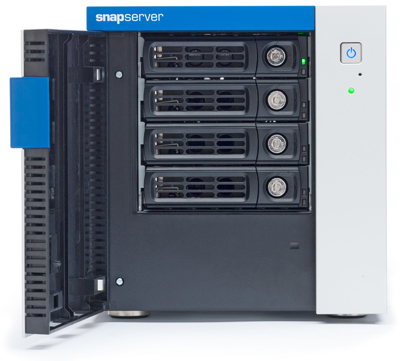

Front Open View

SnapServer Comparison:


  SnapServer XSR 120 SnapServer XSR 40 SnapServer XSD 40
  SnapServer XSR 120 SnapServer XSR 40 SnapServer XSD 40
Operating System GuardianOS 7.6 With DynamicRAID GuardianOS 7.6 With DynamicRAID GuardianOS 7.6 With DynamicRAID
Product Summary Massive scalability, data protection and remote access Collaboration, backup and disaster recovery Large capacity storage for the desktop
Best Fit For High Scalability in mixed business environments Growth and syncing for small office environments Storage for distributed office environments
Form Factor 2U rackmount 1U rackmount Desktop
Drives Supported In Unit 12 4 4
Supports Expansion Unit Yes, up to 7 total Yes, up to 3 total No
Total Capacity Up to 576TB Up to 240TB Up to 16TB
DynamicRAID
Dynamic Volumes
Replication Optional
RAID Levels 0, 1, 5, 6, 10, JBOD / DynamicRAID Dual or Single Parity 0, 1, 5, 6, 10, JBOD / DynamicRAID Dual or Single Parity DynamicRAID dual or single parity or Traditional RAID 0, 1, 5, 6, 10
Drives Supported SAS, Enterprise SATA and SSD Enterprise SATA SATA-II
Network Connectivity 2 x Gigabit Ethernet ports (autosensing 10/100/1000Base-T, dual RJ-45 network connections); Support for stand-alone, failover, and load balancing modes; Optional: Additional quad port Gigabit Ethernet card - PCIe; Optional dual port 10 Gigabit Ethernet card – PCIe 2 x Gigabit Ethernet ports (autosensing 10/100/1000Base-T, dual RJ-45 network connections); Support for stand-alone, failover, and load balancing modes 2 x Gigabit Ethernet ports (autosensing 10/100/1000Base-T, dual RJ-45 network connections); Support for stand-alone, failover, and load balancing modes
Included Capabilities Remote Management, Replication , Snapshots, DynamicRAID, Dynamic Volumes, Unified Storage, Backup Interface Remote Management, Replication (optional), Snapshots, DynamicRAID, Dynamic Volumes, Unified Storage, Backup Interface RDX Backup, Remote Management, DynamicRAID, Dynamic Volumes, Replication*, Unified Storage, Snapshots, Backup Interface
Supported Platforms Windows, Linux, Mac, VMWare Windows, Linux, Mac, VMWare Windows, Linux, Mac, VMWare
Certifications Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 Hyper-V, Windows Server 2012, VMWare Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 Hyper-V, Windows Server 2012, VMWare Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 Hyper-V, Windows Server 2012, VMWare

Documentation:

Download the SnapServer XSD Datasheet (PDF).

Pricing Notes:

SnapServer XSD System Bundles
ACC – Memory Module, XSR40/XSD40/DX1, 2GB DIMM
#OT-ACC902022
Our Price: $121.00
ACC - SnapServer XSD 40 2TB SATA w/Carrier
#OT-ACC902023
Our Price: $171.00
ACC - SnapServer XSD 40 3TB SATA w/Carrier
#OT-ACC902024
Our Price: $216.00
ACC - SnapServer XSD 40 4TB SATA w/Carrier
#OT-ACC902025
Our Price: $315.00
ACC - SnapServer XSD 40 6TB SATA w/Carrier
#OT-ACC902049
Our Price: $427.00
ACC - SnapServer XSD 40 8TB SATA w/Carrier
#OT-ACC902087
Our Price: $584.00
SnapServer XSD40 4-Bay 0-Drive - Only Sold with Overland Drives
#OV-XSD40-DD
Our Price: $763.00
SnapServer XSD 40 4-Bay Drive 0 Drive - Sold without Drives
#OV-XSD40-ND
Our Price: $693.00
XSD 40 Mobotix Pre-configuration
XSD40 preconfigured for Mobotix Auto Install with 2*1TB
#SNAP-MBTX-21
Our Price: $1,019.00
XSD40 preconfigured for Mobotix Auto Install with 2*2TB
#SNAP-MBTX-22
Our Price: $1,118.00
XSD40 preconfigured for Mobotix Auto Install with 2*4TB
#SNAP-MBTX-24
Our Price: $1,407.00
XSD40 preconfigured for Mobotix Auto Install with 4*1TB
#SNAP-MBTX-41
Our Price: $1,261.00
XSD40 preconfigured for Mobotix Auto Install with 4*2TB
#SNAP-MBTX-42
Our Price: $1,460.00
XSD40 preconfigured for Mobotix Auto Install with 4*4TB
#SNAP-MBTX-44
Our Price: $2,038.00
XSD40 preconfigured for Mobotix Auto Install with 4*8TB
#SNAP-MBTX-48
Our Price: $3,200.00
OverlandCare - SnapServer XSD 40
OverlandCare Bronze-Level Warranty Coverage (9X5 Phone/Adv. Parts Replace), 1-Yr Uplift, XSD 40
#EWCAREL1R-XSD40
Our Price: $155.00
OverlandCare Bronze-Level Warranty Coverage (9X5 Phone/Adv. Parts Replace), 1-Yr Extension, XSD 40
#EWCAREL1E-XSD40
Our Price: $239.00
OverlandCare Silver-Level Warranty Coverage (NBD Onsite), 3-Yr. Uplift, XSD 40
#EWCAREL2U-XSD40
Our Price: $289.00
OverlandCare Silver-Level Warranty Coverarage (9x5 Phone/NBD Onsite), 1-Yr Uplift, XSD40
#EWCAREL2R-XSD40
Our Price: $199.00
OverlandCare Silver-Level Warranty Coverage (9X5 Phone/NBD Onsite), 1-Yr Extension, XSD 40
#EWCAREL2E-XSD40
Our Price: $269.00
OverlandCareGold-LevelWarrantyCoverage(24x7Phone/9x5x4-HrOnsite),3-YrUplift, XSD 40
#EWCAREL3U-XSD40
Our Price: $389.00
OverlandCare Gold-Level Warranty Coverage (24x7 Phone/NBD Onsite), 1-Yr Uplift, XSD 40
#EWCAREL3R-XSD40
Our Price: $249.00
OverlandCare Gold-Level Warranty Coverage (24x7 Phone/NBD Onsite), 1-Yr Extension, XSD 40
#EWCAREL3E-XSD40
Our Price: $299.00
OverlandCarePlatinum-LevelWarrantyCoverage(24x7Phone/24x7x4-HrOnsite),3-Yr Uplift, XSD 40
#EWCAREL4U-XSD40
Our Price: $599.00
OverlandCarePlatinum-LevelWarrantyCoverage(24x7Phone/24x7x4-HrOnsite),1-Yr Uplift, XSD 40
#EWCAREL4R-XSD40
Our Price: $349.00
OverlandCare Platinum-Level Warranty Coverage (24x7 Phone/24x7x4-Hr Onsite), 1-Yr Extension, XSD 40
#EWCAREL4E-XSD40
Our Price: $379.00
OverlandCare - SnapServer XSD 40 ND
OverlandCare Bronze-Level Warranty Coverage (9X5 Phone/Adv. Parts Replace), 1-Yr Uplift, XSD 40-ND
#EWC-11U-XSDND
Our Price: $104.00
OverlandCare Bronze-Level Warranty Coverage (9X5 Phone/Adv. Parts Replace), 3-Yr Uplift, XSD 40-ND
#EWC-13U-XSDND
Our Price: $177.00
OverlandCare Bronze-Level Warranty Coverage (9X5 Phone/Adv. Parts Replace), 1-Yr Extension, XSD 40-ND
#EWC-11E-XSDND
Our Price: $161.00
OverlandCare Silver-Level Warranty Coverage (9x5 Phone/NBD Onsite), 1-Yr. Uplift, XSD 40-ND
#EWC-21U-XSDND
Our Price: $134.00
OverlandCare Silver-Level Warranty Coverage (9x5 Phone/NBD Onsite), 3-Yr. Uplift, XSD 40-ND
#EWC-23U-XSDND
Our Price: $195.00
OverlandCare Silver-Level Warranty Coverage (9x5 Phone/NBD Onsite), 1-Yr Extension, XSD 40-ND
#EWC-21E-XSDND
Our Price: $182.00
OverlandCare Gold-Level Warranty Coverage (24x7 Phone/NBD Onsite), 1-Yr Uplift, XSD 40-ND
#EWC-31U-XSDND
Our Price: $186.00
OverlandCare Gold-Level Warranty Coverage (24x7 Phone/NBD Onsite), 3-Yr Uplift, XSD 40-ND
#EWC-33U-XSDND
Our Price: $290.00
OverlandCare Gold-Level Warranty Coverage (24x7 Phone/NBD Onsite), 1-Yr Extension, XSD 40-ND
#EWC-31E-XSDND
Our Price: $222.00
OverlandCare Platinum-Level Warranty Coverage (24x7 Phone/24x7x4-Hr Onsite), 1-Yr Uplift, XSD 40-ND
#EWC-41U-XSDND
Our Price: $260.00
OverlandCare Platinum-Level Warranty Coverage (24x7 Phone/24x7x4-Hr Onsite), 3-Yr Uplift, XSD 40-ND
#EWC-43U-XSDND
Our Price: $446.00
OverlandCare Platinum-Level Warranty Coverage (24x7 Phone/24x7x4-Hr Onsite), 1-Yr Extension, XSD 40-ND
#EWC-41E-XSDND
Our Price: $282.00
