SnapScale X2 Clustered NAS Storage
Infinitely Simple... Infinitely Scalable

SnapScale X2 Clustered NAS Storage

SnapScale Series

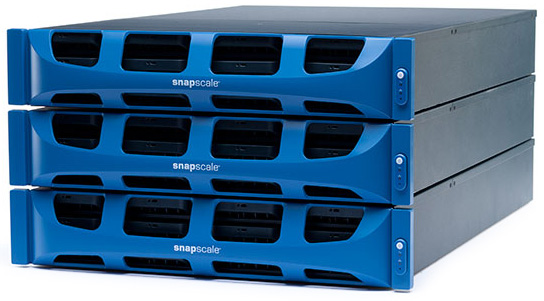

SnapScale X2 Chassis
SnapScale X2 Chassis
#X2-00-00x00
Our Price: $6,815.00
SnapScale X2 Systems
SnapScale X2 10GbE RJ45 Node 24TB (12 drives X 2TB NL-SAS)
#X2-10R-12x02
Our Price: $17,720.00
SnapScale X2 10GbE RJ45 Node 48TB (12 drives X 4TB NL-SAS)
#X2-10R-12x04
Our Price: $21,630.00
SnapScale X2 10GbE RJ45 Node 72TB (12 drives X 6TB NL-SAS)
#X2-10R-12x06
Our Price: $31,420.00

More pricing below, click here!

SnapScale X2 Overview:

Network Attached Storage has fulfilled many of the traditional IT needs by providing affordable data retention with simple management, and compatibility across multiple platforms. With the convenience and simplicity of Network Attached Storage it is difficult to imagine a business environment today that is not utilizing NAS, however with the explosion of data and the importance of compliance and uptime; traditional scale-up NAS solutions are quickly reaching limits of capacity, redundancy and performance within dynamic IT storage environments.

The SnapScale X2 from Overland Storage is a clustered NAS solution that solves the problems of traditional storage by enabling organizations with rapid or unpredictable data growth to scale capacity and performance infinitely without adding management complexity. Built on Overland Storage RAINcloud™ OS technology, SnapScale eliminates islands of storage, enabling easy and affordable scaling without having to predict capacity in advance. Offering user selectable levels of data redundancy, SnapScale writes data across multiple nodes and drives simultaneously for instant protection and high availability by ensuring no single point of failure ever exists. The SnapScale hardware architecture and “single pane of glass” management creates a consistent user experience while both managing the existing Global Namespace and scaling storage as needed, without additional layers of administration.

While the benefits of SnapScale may be clearly evident for large businesses with petabytes of storage, implementing scalable file serving can be just as important for businesses much earlier in their lifecycle that have yet to encounter serious scaling limitations. By investing in the SnapScale architecture up front, smaller organizations can assure that their file serving infrastructure will grow to meet future needs painlessly and cost-effectively, regardless of how rapidly performance and capacity requirements increase over time.

With This Product You Can...

  • Expand capacity and performance, as well as redundancy without adding complexity
  • Manage a large Global Namespace through an intuitive interface
  • Automate the protection of critical data and ensure no single point of failure
  • Scale Up or Scale Out by adding drives or nodes to expand capacity in an existing cluster

Highlights:

  • Expand capacity and performance infinitely
  • Simple management of large storage capacities
  • Remote replication between SnapScale clusters or Win/Linux/UNIX servers
  • Automatic HA failover
  • Add additional nodes or drives as needed
  • Hot spares for automatic drive repair
  • Flexible Volumes
  • Snapshots
  • Home Directories
Form Factor 2U rackmount (3 X 2U Minimum Cluster Size)
System Scalability NL-SAS: 2TB, 3TB, 4TB | 7200 RPM
Drive Types Up to 12 x NL-SAS drives
RAIN Levels 2-way or 3-way drive redundancy
Capabilities Remote Management, Global Namespace, Flexible Volumes, Snapshots, Replication*, High Availability, High Performance, iSCSI block level access, SNMP, User and Group Quotas, Data Balancer, Spare Distributer, RapidRebuild
Support Platforms Windows   Linux   Mac   VMware
Certifications Windows Server    VMware Ready

Features:


Intelligent Clustering

Intelligent Clustering

Optimize data distribution, protection and performance automatically with the SnapScale Intelligent Clustering features.

Highlights
  • Optimize performance across your cluster with the data balancer tool that distributes data evenly across drives on nodes
  • With the spare distributer, rebalance hot-spares within your cluster to automate the distribution of data protection
  • The RAINcloud OS Alert System notifies the administrator in the event of an optimization event recommendation
Why You Need It...
  • SnapScale will recommend the best options for optimizing your cluster performance and data protection automatically
Unified Storage

Unified Storage

Consolidate your storage by hosting both block and file level data on your SnapScale X2 clustered NAS system.

Highlights
  • Utilize common networking protocols such as SMB, NFS, HTTP or FTP for file sharing, collaboration and backup
  • Host database storage and virtualized servers on SnapScale iSCSI
  • Support your server consolidation and virtualization initiatives
Why You Need It...
  • Unified Storage allows you to store block and file-based data on a single SnapScale clustered NAS system
Infinitely Scalable

Infinitely Scalable… Instantly Available

There are no more size limitations for your storage. Add drives to nodes, or add entire nodes at anytime to increase your Global Namespace capacity. Storage management remains the same no matter how much capacity exists on SnapScale.

Highlights
  • Expand storage by adding hard drives or entire nodes to the cluster with no downtime
  • Improve storage utilization with thin provisioning and flexible volume management
  • Add storage to the Global Namespace without business intervention
Why You Need It...
  • SnapScale can keep up with your demanding environment with always on, infinitely scalable and instantly available capacity expansion.
Global Namespace

Global Namespace

Consolidate your storage by hosting file level data on your SnapScale clustered NAS system. Utilize common networking protocols for file sharing, collaboration, backup and archiving.

Highlights
  • File level access with CIFS (SMB), NFS, and HTTP, protocols
  • Create limitless virtual volumes within the Global Namespace that expand as storage is added
  • Software features allow administrators to manage and monitor usage and capacity
Why You Need It...
  • Eliminate islands of storage by consolidating with SnapScale and bring management under a single, simple to use and easy to administer interface.
RapidRebuild

RapidRebuild

Provides fast recovery in the event of a SnapScale cluster drive failure while remaining online and connected to data.

Highlights
  • Quickly returns the SnapScale cluster to high availability
  • Reduces the time spent in degraded mode
  • Minimizes the impact of a drive rebuild to the cluster performance
Why You Need It...
  • Recovers data to a SnapScale global hotspare in a fraction of the time compared to a traditional RAID rebuild.
High Availability

High Availability

Protect data from not only the failure of multiple drives, but even the failure of entire nodes with no downtime, offline rebuilding or system slow down.

Highlights
  • Data is balanced across the cluster to ensure the best performance available
  • SnapScale nodes protect files automatically when data is written to the Global Namespace
  • Increased redundancy as nodes are added
Why You Need It...
  • Eliminate single points of failure with a SnapScale cluster and achieve maximum uptime.
High Performance

High Performance

Eliminate storage bottlenecks by spreading performance between multiple nodes in a SnapScale cluster. Each node adds processing power, network bandwidth and more hard drives that work in conjunction to increase throughput.

Highlights
  • Get the benefit of performance improvements as bandwidth, file I/O, processing power and capacity expand with each node
  • SnapScale automatically balances user connections to continuously optimize throughput
  • Scale performance and storage capacity simultaneously
Why You Need It...
  • Simply add additional SnapScale nodes as needed to an existing cluster to accelerate application performance and to keep up with an ever expanding user base, without downtime or tedious data migration.
Replication with SnapEDR

Replication with SnapEDR™ – Across the Hall or Across the Globe

Prepare for disaster recovery with Snap Enterprise Data Replicator (Snap EDR). With Snap EDR you can automatically replicate files between hundreds of remove SnapServers in a distributed Entperprise, or between SnapScale clusters for true disaster recovery. With SnapEDR you can also replicate between Windows, Linux, UNIX and Macintosh servers. With Snap EDR you can be assured that your files are moved off-site safely and securely.

Highlights
  • Supports byte-level incremental replication, bandwidth throttling, compression and encryption
  • Excellent for the distributed Enterprise
  • Remotely backup servers across the globe, or from cluster to cluster, from a single management interface
Why You Need It...
  • Securely and efficiently replicate files off-site with Snap Enterprise Data Replicator to protect the world’s most important data…yours.
Simple/Intuitive Set-up

Simple/Intuitive Set-up

Configure a SnapScale cluster with seven easy steps through the intuitive web-based interface.

Highlights
  • Manage hundreds of petabytes through a local or remote client
  • Configure your cluster or add storage in just 5 minutes
  • Keep administrative costs down with the best in class RAINcloud OS interface
Why You Need It...
  • Now Clustered NAS is easy to configure and the management experience remains simple, no matter how much storage is added.

Deployment:

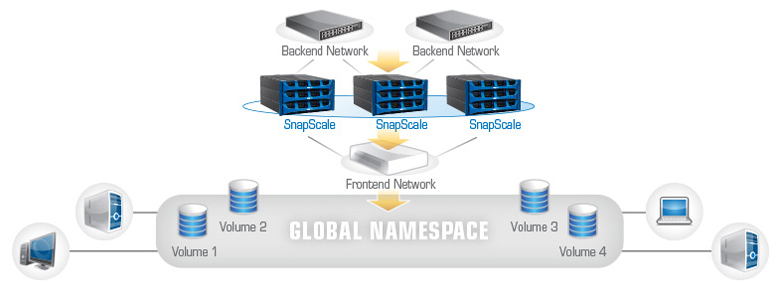

SnapScale X2 Deployment

Technical Specifications:

SnapScale X2 Specifications:
Operating System RAINcloud OS™3.0
Management Wizard-based Configuration Volume Usage Statistics, Event Log, Email Notification, Administrator Authentication, Remote Management, Multi-Server Monitoring, and Visualization with SnapServer Manager
Network File Protocols CIFS (SMB), NFS, HTTP
Snapshots Included
Replication Snap EDR™ (optional)
Microsoft Active Directory Support Included
Form Factor 2U rackmount
CPU and Memory Intel Quad Core 2.4GHz / 2 X 8GB DDR3 ECC Memory Module
Drive Configuration Up to 12 x NL-SAS
RAIN Levels 2-way or 3-way drive redundancy
Drive Types Supported NL-SAS: 2TB, 3TB, 4TB | 7200 RPM
Network Connectivity 4 x 1GbE per node (2 back-end and 2 front-end); or 4 X 10GbE per node with SFP+ connectors (cables and SFP+ transciever modules sold separately)
Minimum back-end network switch requirements The Ethernet switch used for the back-end storage network has a few basic requirements that the RAINcloud OS depends on. These requirements include compatibility with certain protocols and the ability to expand the cluster without compromising the storage network throughput.
  • 2 switches to provide fault tolerance
  • Single Gigabit Ethernet interconnect between the switches
  • Gigabit Ethernet ports
  • Multicast v1, v2 supported
  • Bandwidth of internal backplane must be greater than or equal to a total of 1Gbps per port
  • Layer 2 managed switch
  • Port count: clusters should endeavor to have enough ports to accommodate the entire cluster. Thus a 23 node cluster could use two 24 port switches and a 47 node cluster could be set up on two 48 port switches.
  Individual Node Minimum 3 Node Cluster
(24 Port Switches not included)
Physical/Mounting Width: 17.17 in (436.1mm)
Height: 3.36 in. (85.3mm)
Depth: 26.32 in (668.5mm)
Width: 17.17 in (436.1mm)
Height: 10.08 in. (30.24mm) (For rack mounting height dependent on rack & rack post spacing)
Depth: 26.32 in (668.5mm)
Weight Weight With Drives: 51lbs (23.1 kg) fully populated
Weight without Drives: 38.5 lbs (17.5 kg)
Weight With Drives: 153lbs (69.3 kg) fully populated
Weight without Drives: 115.5 lbs (52.5 kg)
Agency Approvals cTUVus, CE, VCCI, FCC Class A cTUVus, CE, VCCI, FCC Class A
Power Power Rating: 350 W autoranging hot swappable modules (1+1) Redundant 100 - 240 VAC, 50 - 60 Hz 4 - 2 Amps Power Rating: 1050W autoranging 3 hot swappable modules (1+1) Redundant 100 - 240 VAC, 50 - 60 Hz 12 - 6 Amps
Input Current Max 4A (RMS) @ 115VAC 2A (RMS) @ 240VAC Max 12A (RMS) @ 115VAC 6A (RMS) @ 240VAC
Power Consumption Idle 225W /2Amps (12 HDDs)
Peak 280W 2.5 Amps (12 HDDs)
Heat Dissipation 1370 BTU
Idle 675W /6Amps (12 HDDs)
Peak 840W 7.5 Amps (12 HDDs)
Heat Dissipation 4110 BTU
Environmental Limits Operating Environment:
Temperature: 50° F to 104° F (10° C to 40° C)
Humidity: 20% to 80% (noncondensing)
Vibration: .5G and 10-300Hz Random for 120 min. max duration
Shock: 6 pulses of 20G half-sine for 2ms all axes, both directions
Altitude: -1000 ft. to 10,000 ft (-305m to 3,048m)

Non-Operating Environment
Temperature: 14° F to 149° F (-10° C to 65° C)
Humidity: 5% to 95% (noncondensing)
Vibration: 2G at 5-500Hz for 90 min. max duration
Shock: 6 pulses of 20G half-sine for 2ms all axes, both directions
Altitude: -1000 ft. to 35,000 ft (-305m to 10,688m)
Standard Warranty 1-year Overland Care Level 2: 9x5 next business day onsite; next business day advanced parts replacement; 24x7 telephone support; Snap EDR support sold separately
Supported Platforms Windows    Linux    Mac

Product Views:

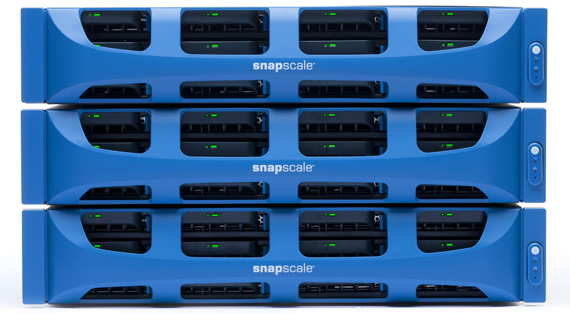

Front View Front View

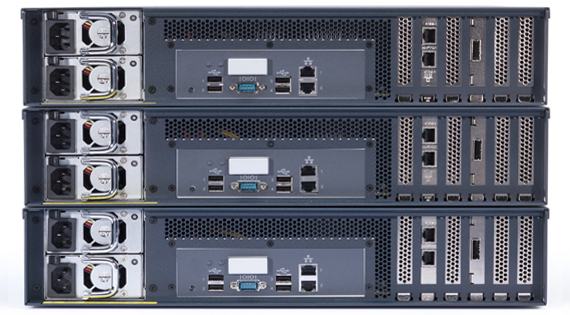

Rear View Rear View

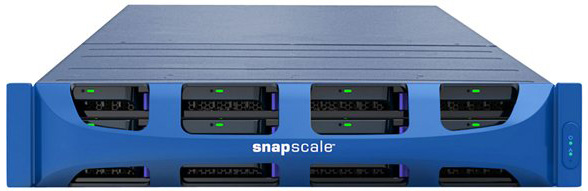

Individual Node View Individual Node View

Comparison Chart:


  SnapScale X2 SnapScale X4
  SnapScale X2 SnapScale X4
Operating System RAINcloud OS™4.0 RAINcloud OS™4.0
Product Summary Scale-out NAS High Density Scale-out NAS
Best Fit For Environments requiring high performance, highly scalable storage with a single global namespace for simple management of unstructured data Improving rack-space storage efficiency and performance for file sharing, consolidation, databases, or virtualized environments
Form Factor 2U 4U
# Drives Supported in Unit 12 36
Supports Expansion Unit Additional Nodes Additional Nodes
Minimum Configuration 4-drives 12-drives
RAIN Levels 2-way or 3-way drive redundancy 2-way or 3-way drive redundancy
Drives Supported 2TB, 3TB or 4TB NL-SAS 2TB, 3TB or 4TB NL-SAS
Network Connectivity 1GbE, 10GbE or Mixed 1GbE, 10GbE or Mixed
Included Capabilities Remote Management, Global Namespace, Flexible Volumes, Snapshots, Replication*, High Availability, High Performance, iSCSI block level access, SNMP, User and Group Quotas, Data Balancer, Spare Distributer, RapidRebuild Remote Management, Global Namespace, Flexible Volumes, Snapshots, Replication*, High Availability, High Performance, iSCSI block level access, SNMP, User and Group Quotas, Data Balancer, Spare Distributer, RapidRebuild
Supported Platforms Windows, Linux, UNIX, MAC Windows, Linux, UNIX, MAC
Certifications VMWare, Windows iSCSI VMWare, Windows iSCSI

Documentation:

Download the SnapScale X2 Datasheet (PDF).

Pricing Notes:

SnapScale X2 - Chassis
SnapScale X2 Chassis
#X2-00-00x00
Our Price: $6,815.00
SnapScale X2 Systems
SnapScale X2 10GbE RJ45 Node 24TB (12 drives X 2TB NL-SAS)
#X2-10R-12x02
Our Price: $17,720.00
SnapScale X2 10GbE RJ45 Node 48TB (12 drives X 4TB NL-SAS)
#X2-10R-12x04
Our Price: $21,630.00
SnapScale X2 10GbE RJ45 Node 72TB (12 drives X 6TB NL-SAS)
#X2-10R-12x06
Our Price: $31,420.00
SnapScale X2 4x10GbE RJ45 96TB (12 drives X 8TB NL-SAS)
#X2-10R-12x08
Our Price: $31,750.00
SnapScale X2 2x10GbE RJ45+2x10GbE SFP+ 24TB (12 drives X 2TB NL-SAS)
#X2-RS-12x02
Our Price: $17,385.00
SnapScale X2 2x10GbE RJ45+2x10GbE SFP+ 48TB (12 drives X 4TB NL-SAS)
#X2-RS-12x04
Our Price: $21,290.00
SnapScale X2 2x10GbE RJ45+2x10GbE SFP+ 72TB (12 drives X 6TB NL-SAS)
#X2-RS-12x06
Our Price: $31,085.00
SnapScale X2 2x10GbE RJ45+2x10GbE SFP+ 96TB (12 drives X 8TB NL-SAS)
#X2-RS-12x08
Our Price: $32,045.00
SnapScale X2 Hard Drive 4-Packs
HDD - SnapScale X2, 2TB NL-SAS w/Carrier, 4 Pack
#X2-HDD-04x02
Our Price: $2,260.00
HDD - SnapScale X2, 4TB NL-SAS w/Carrier, 4 Pack
#X2-HDD-04x04
Our Price: $3,565.00
HDD - SnapScale X2, 6TB NL-SAS w/Carrier, 4 Pack
#X2-HDD-04x06
Our Price: $6,830.00
HDD - SnapScale X2, 8TB NL-SAS w/Carrier, 4 Pack
#X2-HDD-04x08
Our Price: $7,645.00
SnapScale Accessories
SnapScale Cluster Backend Switch 12-port 10G RJ-45. For clusters up to 10 nodes.
#XSW-10R-12P
Our Price: $1,967.00
Network Interface card SFP+
#AC-NIC-2x10S
Our Price: $1,700.00
Network Interface card RJ45
#AC-NIC-2x10R
Our Price: $2,035.00
ACC - SnapScale SFP+ Twinaxial Cable - 1M
#AC-CAB-1M-T
Our Price: $350.00
ACC - SnapScale SFP+ Twinaxial Cable - 3M
#AC-CAB-3M-T
Our Price: $470.00
ACC - SnapScale SFP+ Transceiver Module, Qty 2
#AC-TRM-02
Our Price: $1,615.00
OverlandCare - SnapScale X2 1G
OvCareSilver-Level Warranty Coverage(9x5xNBD Onsite), 1-YrUplift, SSCLX2-1G
#EWCAREL2R-SS-1G
Our Price: $1,727.00
OvCareSilver-Level Warranty Coverage(9x5xNBD Onsite), 1-Yr Extension, SSCLX2-1G
#EWCAREL2E-SS-1G
Our Price: $1,881.00
OvCareSilver-Level Warranty Coverage(9x5xNBD Onsite), 3-YrUplift, SSCLX2-1G
#EWCAREL2U-SS-1G
Our Price: $3,090.00
OvCareGold-Level Warranty Coverage(9x5x4-Hr Onsite/24x7 Phone assist), 1-YrUplift, SSCLX2-1G
#EWCAREL3R-SS-1G
Our Price: $2,015.00
OvCareGold-Level Warranty Coverage(9x5x4-Hr Onsite/24x7 Phone assist), 1-YrExtension, SSCLX2-1G
#EWCAREL3E-SS-1G
Our Price: $2,104.00
OvCareGold-Level Warranty Coverage(9x5x4-Hr Onsite/24x7 Phone assist), 3-YrUplift, SSCLX2-1G
#EWCAREL3U-SS-1G
Our Price: $4,663.00
OvCarePlatinum-Level Warranty Coverage(24x7x4-Hr Onsite/24x7 Phone assist), 1-Yr Uplift, SSCLX2-1G
#EWCAREL4R-SS-1G
Our Price: $2,089.00
OvCarePlatinum-Level Warranty Coverage(24x7x4-Hr Onsite/24x7 Phone assist), 1-Yr Extension, SSCLX2-1G
#EWCAREL4E-SS-1G
Our Price: $2,270.00
OvCarePlatinum-Level Warranty Coverage(24x7x4-Hr Onsite/24x7 Phone assist), 3-Yr Uplift, SSCLX2-1G
#EWCAREL4U-SS-1G
Our Price: $5,015.00
OverlandCare - SnapScale X2 10G
OvCareSilver-Level Warranty Coverage(9x5xNBD Onsite), 1-Yr Uplift, SSCLX2-10G
#EWCAREL2R-SS-10G
Our Price: $2,465.00
OvCareSilver-Level Warranty Coverage(9x5xNBD Onsite), 1-Yr Extension, SSCLX2-10G
#EWCAREL2E-SS-10G
Our Price: $2,716.00
OvCareSilver-Level Warranty Coverage(9x5xNBD Onsite), 3-Yr Uplift, SSCLX2-10G
#EWCAREL2U-SS-10G
Our Price: $4,410.00
OvCareGold-Level Warranty Coverage(9x5x4-Hr Onsite/24x7 Phone assist), 1-Yr Uplift, SSCLX2-10G
#EWCAREL3R-SS-10G
Our Price: $2,739.00
OvCareGold-Level Warranty Coverage(9x5x4-Hr Onsite/24x7 Phone assist), 1-YrExtension, SSCLX2-10G
#EWCAREL3E-SS-10G
Our Price: $3,020.00
OvCareGold-Level Warranty Coverage(9x5x4-HrOnsite/24x7 Phone assist), 3-YrUplift, SSCLX2-10G
#EWCAREL3U-SS-10G
Our Price: $6,632.00
OvCarePlatinum-Level Warranty Coverage(24x7x4-Hr Onsite/24x7 Phone assist), 1-Yr Uplift, SSCLX2-10G
#EWCAREL4R-SS-10G
Our Price: $2,991.00
OvCarePlatinum-Level Warranty Coverage(24x7x4-Hr Onsite/24x7 Phone assist), 1-Yr Extension, SSCLX2-10G
#EWCAREL4E-SS-10G
Our Price: $3,210.00
OvCarePlatinum-Level Warranty Coverage(24x7x4-Hr Onsite/24x7 Phone assist), 3-Yr Uplift, SSCLX2-10G
#EWCAREL4U-SS-10G
Our Price: $7,182.00
