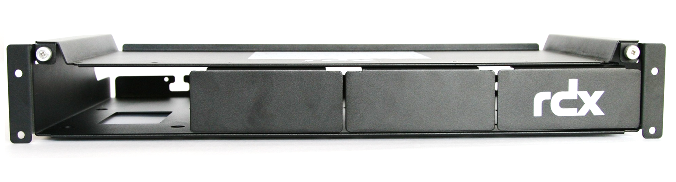

RDX® QuadPAK™
Professional Rack Mount Kit for RDX QuikStor Drives

RDX QuadPAK

Overland Storage Products
RDX QuadPAK
RDX QuadPAK
1.5U rack mount kit for 1-4 external USB RDX QuikStor drives. Includes 3 bezels, bezel screws, rack mount screws and zip ties.
#3800-RAK
Our Price: $299.00

More pricing below, click here

RDX® QuadPAK™
Professional Rack Mount Kit for RDX QuikStor Drives

The Tandberg Data RDX QuadPAK provides an easy to use and highly affordable rackmount solution for RDX customers. The RDX QuadPAK allows up to 4 RDX external drives to be securely installed in a 19" rack to simplify backup and restore operations. This enables RDX to coexist with other IT equipment like servers, disk systems and network components in one rack.

Key Benefits

  • Professionality
    Best value solution for utilizing RDX within a 19" rack
  • Scalability
    Install up to 4 RDX external drives, increasing capacity and performance
  • Flexibility
    Serving multiple servers, establish media spanning and media rotation
  • Usability
    Add or remove RDX drives in seconds, all screws and parts are accessible from the front
  • Compatibility
    Compact design fully compatible with all 19" racks, very slight depth (248mm, 9.45in)

RDX QuikStor Rack Mount Integration

When utilizing RDX drives in a datacenter, there was always the question where to place them into the existing server rack. So external RDX drives often have been arranged on top of the servers, where they could get out of place. Also cabling could not be properly installed. The QuadPAK 1.5U rack mount kit is the solution for integrating up to four external RDX USB 3.0 drives in a professional manner in your 19“ rack cabinet.

Multiple Servers, Media Spanning, Media Rotation

The RDX QuadPAK allows to install up to four servers with their own RDX drive for backup , disaster recovery or data exchange. Furthermore, the possibility to install multiple RDX drives enables enhanced functionalities like media spanning or media rotation. Backup can easily be extended to multiple media (if feature is supported in backup software). In addition also media rotation can be established. So backups could be performed on different media for disaster recovery without user interaction.

Easy installation and easy handling

The RDX QuadPAK rackmount solution is 1.5U high and allows up to four RDX external drives to be securely installed in a 19" rack. The RDX QuadPAK is easy to install and use, additional RDX drives can be added or removed in seconds by loosening two thumbscrews, enabling customers to increase backup capacity and performance when they need it most. As RDX QuadPAK does not contain an internal power supply, power to the RDX external drives is provided via the existing RDX external power supplies. The RDX QuadPAK includes a cable restraint to prevent the USB interface or power cable from being accidentally disconnected.

Specifications:

Specifications HDD Media
Compatibility Compatible to all external Tandberg Data RDX QuikStor drives
Number of installable RDX drives 1 - 4
Enclosed accessories 3 bezels, bezel screws, rack mount screws, zip ties
Rackspace 1.5U, 19“ rack cabinet
Dimension (HxWxL)
QuadPAK 72.5mm x 481mm x 248mm (2.85in x 18.94in x 9.45in)
Shipping box 150mm x 615mm x 350mm (5.9in x 24.22in x 13.78in)
Weight
QuadPAK 2.66kg (5.86lbs)
Shipping weight 4.2kg (9.26lbs)

Documentation:

Download the RDX QuadPAK Datasheet (PDF).

Download the RDX Family Flyer (PDF).
