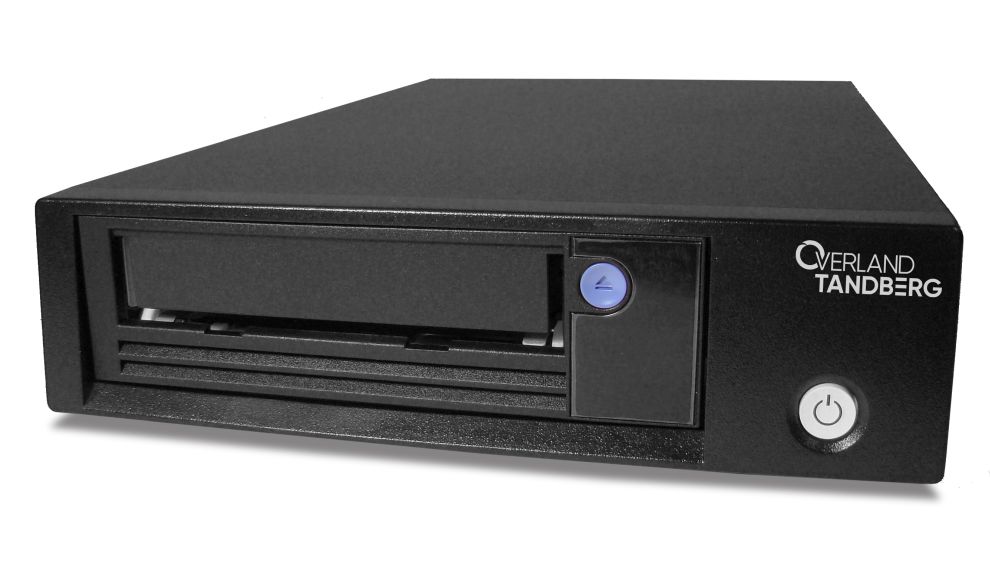

    LTO-8 HH
    Rethink Backup and Archive with LTO Tape Drives

    LTO-8 HH

    LTO Tape Drive
    LTO-8 HH
    LTO-8 HH Internal Drive, SAS, Bare
    Tandberg Data LTO-8 HH Internal SAS tape drive with 3yrs OverlandCare Bronze-Level included
    12 TB (Native)/30 TB (Compressed) - Black - 6Gb/s SAS1/2H Height - Internal - 300 MB/s Native - 750 MB/s Compressed - Linear Serpentine TAPE DRIVE BLACK
    #TD-LTO8iSA
    Our Price: $3,529.00
    LTO-8 HH Internal Drive, FC, Bare
    Tandberg Data LTO-8 HH Internal FC tape drive with 3yrs OverlandCare Bronze-Level included
    12 TB (Native)/30 TB (Compressed) - Black - Fibre Channel1/2H Height - Internal - Linear Serpentine TAPE DRIVE BLACK
    #TD-LTO8iFC
    Our Price: $4,210.00
    LTO-8 HH External Drive, SAS, Kit
    Tandberg Data/Overland Storage NEO External LTO8 SAS Stand Alone Tape Drive Kit (includes power cord and data cartridge and 3yrs OverlandCare Bronze-Level)
    12 TB (Native)/30 TB (Compressed) - SAS1/2H Height - External - Linear Serpentine - TAA Compliant DRIVE TAA COMPLIANT
    #TD-LTO8xSA
    Our Price: $3,839.00

    More pricing below, click here

    LTO-8 HH

    The Overland-Tandberg LTO-8 tape drive technology is the newest LTO-generation and follows the roadmap of the LTO consortium, which now includes 12 generations.

    The uncompressed capacity has doubled to 12TB compared to the predecessor LTO-7. The compressed transfer rate remains the same and amounts to 2.7TB/h. LTO-8 is the optimal solution for capacity-hungry, performance-driven applications like in the media and entertainment industry, in imaging applications, in medical environments or for the collection of scientific data. The LTO-8 tape drive supports LTFS, WORM and AES 256-bit hardware encryption providing maximum protection for data stored off-site or in transit. LTO-8 drives are read/write compatible with LTO-7 media.

    Features

    • Capacity: 12TB / 30TB (native/compressed*)
    • Performance up to 2.7 TB/h (compressed*)
    • Low cost of ownership and low media cost
    • Enterprise features and performance in a small form factor
    • Future proof with 12-generation roadmap
    • Data speed matching reduces mechanical wear and extends tape life
    • Proven reliability MTBF of 250,000 hrs at 100% duty cycle
    • LTFS, WORM and AES 256-bit encryption
    • 30 year archival life
    • 3 years Advanced Replacement Service warranty

    Key Benefits:

    • Backup as much as 30TB of data on a single cartridge
    • Reduce your backup window and use of server and network resources with high-performance data transfer rates
    • Maximize your investment and ensure that your data is safe with proactive drive and media management
    • Secure confidential information and address compliance issues with hardware data encryption and WORM support
    • Ensure effortless connectivity with widespread server and backup software support
    • Provide backward compatibility to legacy tape cartridges in automation environments

    LTO-7 Type M

    LTO-7 type M media are LTO-7 media, which are initialized in a LTO-8 drive. In addition, dedicated barcode labels will be used to mark these media in an automation environment. LTO-7 type M media provide a capacity of 9TB, which is a perfect choice for customers who do not need the total capacity of a LTO-8 media.

    * Assumes compression ratio of 2:1 on LTO-4/5 and 2.5:1 on LTO-6,7 and 8

    Specifications:

    Capacity (native/compressed) 12TB / 30TB*
    Transfer Rate (native/compressed) 300 MB/s / 750 MB/s*
    Dynamic Speed Matching 112-300MB/s
    Memory Buffer Size 1GB
    Data Access Speed 50 sec.
    Data Compression 16KB (2.5:1)
    Encryption AES 256-bit
    LTFS Yes
    Recording format LTO Ultrium 8
    Interface 6GB SAS/SFF 8088
    Reliability
    MTBF Hours (100% duty cycle) 250,000 hours @ 100% duty cycle
    Head Life 100,000 tape running hours
    Hard Error Rate 1 x 10(-19) bits
    Environmental Specifications
    Temperature (Operating) 50° - 100°F (10°C - 38°C)
    Temperature (Non-operating) -40° – 151°F (-5°C - 65°C)
    Relative Humidity (Operating) 20 – 80% (non-condensing)
    Relative Humidity (Non-operating) 10 – 95% (non-condensing)
    Power Requirements
    Idle 4 W
    Typical 30 W
    Maximum 42 W
    Power Supply/ Required (int) 5V DC, 3.7A, 12 V, 0.9A
    Certification CSA Certification to C22.2, No. 60950 (cCSAus), TUV EN60950 (IEC 60950), CE Declaration of Conformity, FCC 47 CFR Parts 15, NOM, VCCI. C-TICK, RRL, BSMI, GOSH CB Certificate and Report (IEC 60950)
    Warranty 3-years Advance Replacement Service Warranty**
    Dimensions
    Physical Internal /
    External (HxWxD)
    1.7 in. x 5.8 in. x 8.3 in.(43.2mm x 147.3mm x 210.8mm) /
    2.3 in. x 8.4 in. x 13.1 in. (58.4mm x 213.4mm x 332.7mm)
    Weight
    Weight Out of box, Internal 3.7 lbs. (1.7 kg)
    Weight Out of box, External 9.4 lbs. (4.3 kg)

    * Assumes compression ratio 2:1 on LTO-2/3/4/5 & 2.5:1 on LTO-6/7/8
    ** Availability dependent on location

    Tape Drive Specifications


      LTO-8 LTO-7 LTO-6 LTO-5
    Capacity (native) 12TB 6TB 2.5TB 1.5TB
    Capacity (Compressed) 30TB 15TB 6.25TB 3.0TB
    Transfer Rate (native) 300MB/s (1TB/hr.) 300MB/s (1TB/hr.) 160MB/s (576GB/hr.) 140MB/s (504GB/hr.)
    Transfer Rate (compressed) 750MB/s (2.7TB/hr.) 750MB/s (2.7TB/hr.) 400MB/s (1.4TB/hr.) 280MB/s (1TB/hr.)
    Ratio 2.5:1 2.5:1 2.5:1 2:1
    Interface 6Gb SAS/SFF 8088 6Gb SAS/SFF 8088 6Gb SAS/SFF 8088 6Gb SAS/SFF 8088
    Configurations Internal; external/desktop Internal; external/desktop Internal; external/desktop Internal; external/desktop
    Internal Dimensions (HxWXD) 1.7 in. x 5.8 in. x 8.3 in.
    43.2mm x 147.3mm x 210.8mm
    1.7 in. x 5.8 in. x 8.3 in.
    43.2mm x 147.3mm x 210.8mm
    1.7 in. x 5.8 in. x 8.3 in.
    43.2mm x 147.3mm x 210.8mm
    1.7 in. x 5.8 in. x 8.3 in.
    43.2mm x 147.3mm x 210.8mm
    External Dimensions (HxWxD) 2.3 in. x 8.4 in. x 13.1 in.
    58.4mm x 213.4mm x 332.7mm
    2.3 in. x 8.4 in. x 13.1 in.
    58.4mm x 213.4mm x 332.7mm
    2.3 in. x 8.4 in. x 13.1 in.
    58.4mm x 213.4mm x 332.7mm
    2.3 in. x 8.4 in. x 13.1 in.
    58.4mm x 213.4mm x 332.7mm
    Internal Weight 3.7 lbs. / 1.7 kg 3.7 lbs. / 1.7 kg 3.7 lbs. / 1.7 kg 3.7 lbs. / 1.7 kg
    External Weight 9.4 lbs. / 4.3 kg 9.4 lbs. / 4.3 kg 9.4 lbs. / 4.3 kg 9.4 lbs. / 4.3 kg
    Read/Write Compatibility Write: LTO-8, LTO-7
    Read: LTO-8, LTO-7
    Write: LTO-7, LTO-6
    Read: LTO-7, LTO-6, LTO-5
    Write: LTO-6, LTO-5
    Read: LTO-6, LTO-5, LTO-4
    Write: LTO-5, LTO-4
    Read: LTO-5, LTO-4, LTO-3
    MTBF (Mean Time Between Failure) 250,000 hours @100% duty cycle 250,000 hours @100% duty cycle 250,000 hours @100% duty cycle 250,000 hours @100% duty cycle
    Buffer Size 1024MB 1024MB 512MB 256MB
    Data Rate Matching (native) 112-365MB/s 101-306MB/s 40-160MB/s 40-140MB/s
    Power Consumption (maximum) 30 watts 24 watts 24 watts 24 watts
    Temperature (operating) 50° - 105°F
    10° - 40°C
    50° - 105°F
    10° - 40°C
    50° - 105°F
    10° - 40°C
    50° - 105°F
    10° - 40°C
    Humidity (operating) 20-80% (non-condensing) 20-80% (non-condensing) 20-80% (non-condensing) 20-80% (non-condensing)
    Standard Warranty 3 yr. bronze advanced exchange 3 yr. bronze advanced exchange 3 yr. bronze advanced exchange 3 yr. bronze advanced exchange

    Documentation:

    Download the LTO Tape Drive Datasheet (PDF).
