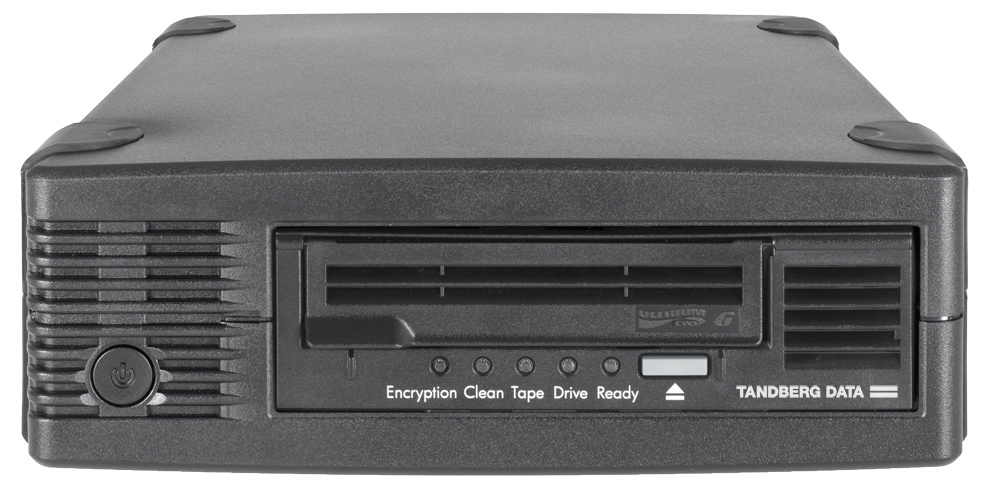

The Tandberg Data's LTO-6 half-height (HH) tape drive brings enterprise-level capacity and performance to small and medium businesses at an affordable price. The Tandberg Data LTO-6 HH drive is able to store up to 6.25TB* of data on a single cartridge and provides performance of up to 1.4 TB per hour. The LTO-6 HH tape drive is backward write-compatible through one generation and read-compatible two generations.

  • Capacity: 2.5TB / 6.25TB (native/compressed)
  • Performance up to 1.4 TB/Hr (compressed)
  • Low cost of ownership and low media cost
  • Enterprise features and performance in a small form factor
  • Future proof with 8-generation roadmap
  • Data speed matching reduces mechanical wear and extends tape life
  • Proven reliability MTBF of 250,000 hrs at 100% duty cycle
  • LTFS, WORM and AES 256-bit encryption
  • 30 year archival life
  • 3 years Advanced Replacement Service warranty

The LTO-6 HH tape drive supports LTFS, WORM and AES 256-bit hardware encryption providing maximum protection for data stored off-site or in transit. The Tandberg Data LTO-6 HH tape drive is offered with a SAS or Fibre Channel (FC) interface and a choice of internal, external or rackmount configurations and is supplied with a 3 year Advanced Replacement Service warranty.

Tandberg Data is the sole manufacturer of LTO-5/6 HH Fibre Channel external (tabletop) tape drives. When used in conjunction with a FC-to-Thunderbolt bridge (Promise or Atto), the LTO-6 tape drives provides customers, especially Mac users, with a unique, high-performance backup and archiving solution to simplify digital workflow and archiving needs.

LTO tape technology makes it easy for users to standardize on a tape technology that meets today's data capacity requirements and ensures futures growth potential. LTO's eight-generation roadmap, with four generations available today, makes it a clear choice for small to medium-sized businesses.

Turnkey Solution

The Tandberg Data LTO-6 HH tape drive ships with Symantec's Backup Exec QuickStart software, embedded media management for intelligent diagnostics and tape alerts, and comes with a 3-year Advanced Service Warranty (Backup Exec QuickStart software is only supplied with kitted products).

Media Compatibility

The Tandberg LTO-HH is compatible with industry standard, multi-sourced LTO media. To achieve the best reliability, Tandberg LTO branded and qualified data cartridges are recommended.

Key Benefits:

  • Backup as much as 30TB of data on a single cartridge
  • Reduce your backup window and use of server and network resources with high-performance data transfer rates
  • Maximize your investment and ensure that your data is safe with proactive drive and media management
  • Secure confidential information and address compliance issues with hardware data encryption and WORM support
  • Ensure effortless connectivity with widespread server and backup software support
  • Provide backward compatibility to legacy tape cartridges in automation environments

Specifications:

Capacity (native/compressed) 2.5TB / 6.25TB*
Transfer Rate (native/compressed) 160 MB/s / 400 MB/s*
Dynamic Speed Matching 54–160 MB/s / 135–400 MB/s*
Memory Buffer Size 512MB
Data Access Speed 50 sec.
Data Compression 16KB (2.5:1)
Encryption AES 256-bit
LTFS Yes (4 partitions)
Recording format LTO Ultrium 6, LTO Ultrium 5, LTO Ultrium 4 (read only
Reliability
MTBF Hours (100% duty cycle) 250,000 hours @ 100% duty cycle
Head Life 60,000 tape running hours
Hard Error Rate 1 x 10(-17) bits
Environmental Specifications
Temperature (Operating) 50° – 95°F
Temperature (Non-operating) -40° – 151°F
Relative Humidity (Operating) 20 – 80% (non-condensing)
Relative Humidity (Non-operating) 10 – 95% (non-condensing)
Power Requirements
Idle 4 W
Typical 29 W
Maximum 39 W
Power Supply/ Required (int) 5V DC, 3.7A, 12 V, 0.9A
Certification CSA Certification to C22.2, No. 60950 (cCSAus), TUV EN60950 (IEC 60950), CE Declaration of Conformity, FCC 47 CFR Parts 15, NOM, VCCI. C-TICK, RRL, BSMI, GOSH CB Certificate and Report (IEC 60950)
Warranty 3-years Advance Replacement Service Warranty**
Dimensions
Physical Internal /
External (HxWxD)
3.3 x 5.7 x 8.2in. (8.5 x 14.5 x 20.7cm) /
4.7 x 8.6 x 11.7in. (12.0 x 21.8 x 29.7 cm)
Shipping Internal /
External (HxWxD)
10.6 x 10.6 x 13in. (27.0 x 27.0 x 33 cm) /
11 x 12.2 x 15.4in. (28 x 31 x 39 cm)
Weight
Weight Out of box, Internal 4.94 lb (2.24 kg)
Weight Out of box, External 12.28 lb (5.57 kg)
Shipping, Internal 7.9 lb (3.6 kg)
Shipping, External 16.1 lb (7.3 kg)

* Assumes compression ratio 2:1 on LTO-2/3/4/5 & 2.5:1 on LTO-6
** Availability dependent on location

Tape Drive Specifications


  LTO-8 LTO-7 LTO-6 LTO-5
Capacity (native) 12TB 6TB 2.5TB 1.5TB
Capacity (Compressed) 30TB 15TB 6.25TB 3.0TB
Transfer Rate (native) 300MB/s (1TB/hr.) 300MB/s (1TB/hr.) 160MB/s (576GB/hr.) 140MB/s (504GB/hr.)
Transfer Rate (compressed) 750MB/s (2.7TB/hr.) 750MB/s (2.7TB/hr.) 400MB/s (1.4TB/hr.) 280MB/s (1TB/hr.)
Ratio 2.5:1 2.5:1 2.5:1 2:1
Interface 6Gb SAS/SFF 8088 6Gb SAS/SFF 8088 6Gb SAS/SFF 8088 6Gb SAS/SFF 8088
Configurations Internal; external/desktop Internal; external/desktop Internal; external/desktop Internal; external/desktop
Internal Dimensions (HxWXD) 1.7 in. x 5.8 in. x 8.3 in.
43.2mm x 147.3mm x 210.8mm
1.7 in. x 5.8 in. x 8.3 in.
43.2mm x 147.3mm x 210.8mm
1.7 in. x 5.8 in. x 8.3 in.
43.2mm x 147.3mm x 210.8mm
1.7 in. x 5.8 in. x 8.3 in.
43.2mm x 147.3mm x 210.8mm
External Dimensions (HxWxD) 2.3 in. x 8.4 in. x 13.1 in.
58.4mm x 213.4mm x 332.7mm
2.3 in. x 8.4 in. x 13.1 in.
58.4mm x 213.4mm x 332.7mm
2.3 in. x 8.4 in. x 13.1 in.
58.4mm x 213.4mm x 332.7mm
2.3 in. x 8.4 in. x 13.1 in.
58.4mm x 213.4mm x 332.7mm
Internal Weight 3.7 lbs. / 1.7 kg 3.7 lbs. / 1.7 kg 3.7 lbs. / 1.7 kg 3.7 lbs. / 1.7 kg
External Weight 9.4 lbs. / 4.3 kg 9.4 lbs. / 4.3 kg 9.4 lbs. / 4.3 kg 9.4 lbs. / 4.3 kg
Read/Write Compatibility Write: LTO-8, LTO-7
Read: LTO-8, LTO-7
Write: LTO-7, LTO-6
Read: LTO-7, LTO-6, LTO-5
Write: LTO-6, LTO-5
Read: LTO-6, LTO-5, LTO-4
Write: LTO-5, LTO-4
Read: LTO-5, LTO-4, LTO-3
MTBF (Mean Time Between Failure) 250,000 hours @100% duty cycle 250,000 hours @100% duty cycle 250,000 hours @100% duty cycle 250,000 hours @100% duty cycle
Buffer Size 1024MB 1024MB 512MB 256MB
Data Rate Matching (native) 112-365MB/s 101-306MB/s 40-160MB/s 40-140MB/s
Power Consumption (maximum) 30 watts 24 watts 24 watts 24 watts
Temperature (operating) 50° - 105°F
10° - 40°C
50° - 105°F
10° - 40°C
50° - 105°F
10° - 40°C
50° - 105°F
10° - 40°C
Humidity (operating) 20-80% (non-condensing) 20-80% (non-condensing) 20-80% (non-condensing) 20-80% (non-condensing)
Standard Warranty 3 yr. bronze advanced exchange 3 yr. bronze advanced exchange 3 yr. bronze advanced exchange 3 yr. bronze advanced exchange

Documentation:

Download the LTO Tape Drive Datasheet (PDF).
